Applied: Develop an external aerodynamic simulation model for Fluent analysis

The Ahmed body is a simplified car model used to study airflow around vehicles. The wake (turbulent flow behind the body) depends on the slant angle:

• Less than 12 degrees: The airflow stays attached to the slant, creating low drag and a mostly two-dimensional flow.

• 12 to 30 degrees: The flow becomes three-dimensional with strong c-pillar vortices, peaking at 30 degrees. This increases drag due to low-pressure areas on the rear surfaces.

• More than 30 degrees: The flow fully separates from the slant, reducing drag and weakening the c-pillar vortices.

This example creates an Ahmed body with a slant angle of 20 degrees. It consists of these steps:

1. Launch PyAnsys Geometry and define the default units.

2. Create sketches for the Ahmed body, enclosure, and BOI (Body of Influence).

3. Generate solid bodies from the sketches.

4. Perform Boolean operations for region extraction.

5. Group faces and define a named selection.

6. Export model as a CAD file.

7. Close session.

Define function for sorting planar face pairs along any axis

This function is used to sort the planar faces along any of the coordinate axis. This is used primarily for sorting the faces to define the named selections.

def face_identifier(faces, axis):
    """
    Sort a pair of planar faces based on their positions along the specified coordinate axis.

    Args:
        faces : List[IFace, IFace]
        List of planar face pairs.

        axis : (string)
        Axis to sort the face pair on. Options are "x", "y", or "z".

    Returns:
        IFace, IFace
        - IFace: Face with the centroid positioned behind the other face along the specified axis.
        - IFace: Face with the centroid positioned ahead of the other face along the specified axis.

    """
    min_face = ""
    max_face = ""
    if axis == "x":
        position = 0
    elif axis == "y":
        position = 1
    else:
        position = 2
    min_face_cor_val = faces[0].point(0.5, 0.5)[position]
    min_face = faces[0]
    max_face_cor_val = faces[0].point(0.5, 0.5)[position]
    max_face = faces[0]
    for face in faces[1:]:
        if face.point(0.5, 0.5)[position] < min_face_cor_val:
            min_face_cor_val = face.point(0.5, 0.5)[position]
            min_face = face
            continue
        elif face.point(0.5, 0.5)[position] > max_face_cor_val:
            max_face_cor_val = face.point(0.5, 0.5)[position]
            max_face = face
    return min_face, max_face

Define function for calculating the vertical and horizontal distances based on the slant angle

def distance_calculator(hypo, slant_angle):
    """
    Calculate the horizontal and vertical distances based on the hypotenuse and slant angle.

    Args:
        hypo : int
        Length of the hypotenuse in millimeters.

        slant_angle : int
        Slant angle in degrees.

    Returns:
        slant_x (float): Horizontal distance calculated using the sine of the slant angle.
        slant_y (float): Vertical distance calculated using the cosine of the slant angle.

    """
    slant_x = hypo * math.cos(math.radians(slant_angle))
    slant_y = hypo * math.sin(math.radians(slant_angle))
    return slant_y, slant_x

Launch PyAnsys geometry and define the default units

Before you start creating the Ahmed body, you must import the necessary modules to create the model using PyAnsys Geometry. It’s also a good practice to define the units before initiating the development of the sketch.

from ansys.geometry.core import launch_modeler
from ansys.geometry.core.sketch import Sketch
from ansys.geometry.core.math import (
    Point2D,
    Plane,
    Point3D,
    UNITVECTOR3D_X,
    UNITVECTOR3D_Y,
    UNITVECTOR3D_Z,
)
from ansys.geometry.core.misc import UNITS, DEFAULT_UNITS

from ansys.geometry.core.plotting import GeometryPlotter
import math
import os

modeler = launch_modeler()
DEFAULT_UNITS.LENGTH = UNITS.mm
DEFAULT_UNITS.angle = UNITS.degrees

Create sketches for the Ahmed body, enclosure, and BOI

Define the appropriate sketch planes parallel to the y-z and x-z planes, passing through the origin (namely sketch_plane and sketch_plane_2 respectively).

Define the sketch planes

# Define sketch plane on the y-z plane passing through the origin
sketch_plane = Plane(
        origin=Point3D([0, 0, 0]),
        direction_x=UNITVECTOR3D_Y,
        direction_y=UNITVECTOR3D_Z,
    )

# Define sketch plane on the x-z plane passing through the origin
sketch_plane_2 = Plane(
    origin=Point3D([0, 0, 0]),
    direction_x=UNITVECTOR3D_X,
    direction_y=UNITVECTOR3D_Z,
)

Define the Ahmed body

# Calculate the horizontal and vertical distance based on slant angle of 20 degrees
slant_y, slant_x = distance_calculator(hypo=222, slant_angle=20)

# Define sketch for the Ahmed body
ahmed_body_sketch = Sketch(sketch_plane)
ahmed_body_sketch.segment(
    start=Point2D([50, 0]), end=Point2D([338 - slant_y, 0])
).segment_to_point(Point2D([338, slant_x])).segment_to_point(
    Point2D([338, 944])
).arc_to_point(
    end=Point2D([238, 1044]), center=Point2D([238, 944]), clockwise=False
).segment_to_point(
    Point2D([150, 1044])
).arc_to_point(
    end=Point2D([50, 944]), center=Point2D([150, 944]), clockwise=False
).segment_to_point(
    end=Point2D([50, 0])
)
ahmed_body_sketch.plot()

Define the enclosure

# Define sketch for enclosure
enclosure_sketch = Sketch(plane=sketch_plane)
enclosure_sketch.box(center=Point2D([1014 / 2, 0]), height=4176, width=1014)
enclosure_sketch.plot()

# Define sketch for mounting 1
mount_sketch_1 = Sketch(sketch_plane_2)
mount_sketch_1.circle(center=Point2D([163.5, 792]), radius=15)

# Define sketch for mounting 2
mount_sketch_2 = Sketch(sketch_plane_2)
mount_sketch_2.circle(center=Point2D([163.5, 322]), radius=15)

# Define sketch for the fillet
ahmed_body_fillet_sketch = Sketch(sketch_plane_2)
ahmed_body_fillet_sketch.segment(
    start=Point2D([194.5, 944]), end=Point2D([194.5, 1044])
).segment_to_point(Point2D([94.5, 1044])).arc_to_point(
    Point2D([194.5, 944]), center=Point2D([94.5, 944]), clockwise=True
)

<ansys.geometry.core.sketch.sketch.Sketch at 0x7f9127fb1bb0>

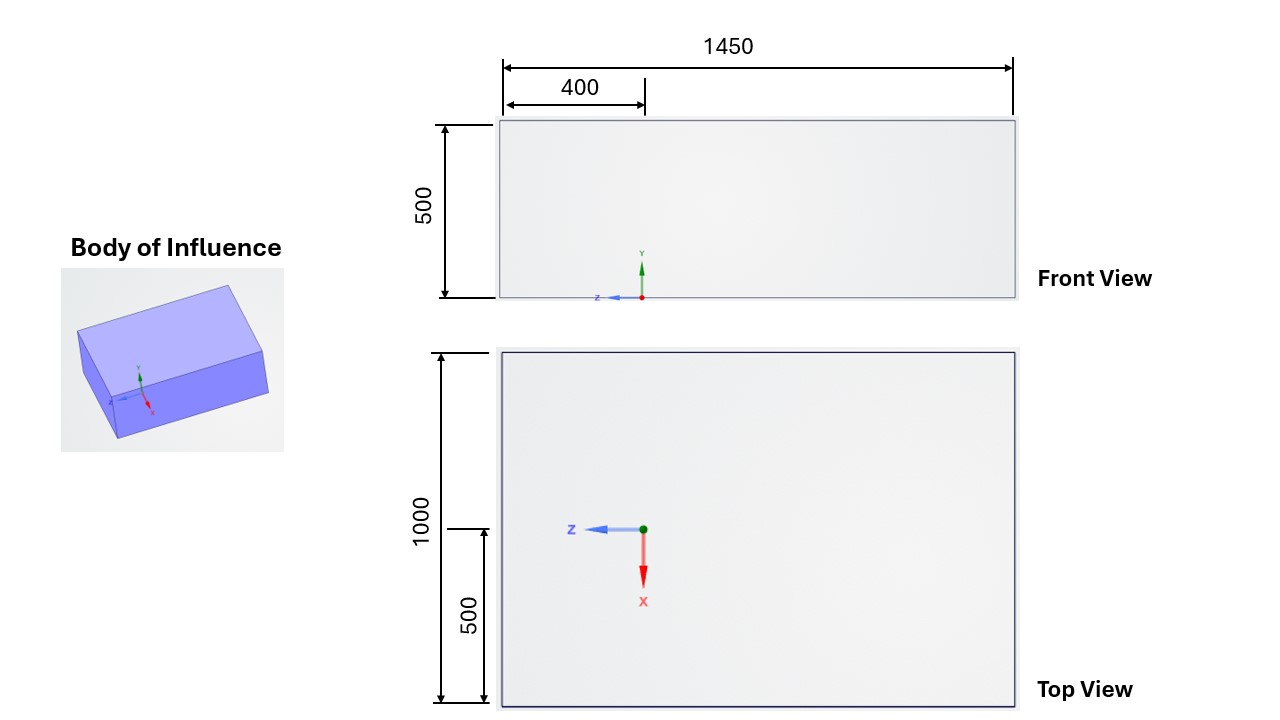

Define the BOI

# Define sketch for BOI
boi_sketch = Sketch(sketch_plane_2)
boi_sketch.box(center=Point2D([0, -325]), width=1000, height=1450)
boi_sketch.plot()

Generate solid bodies from the sketches

From the 2D sketches, generate 3D models by extruding the sketch. First create the design body (namely ahmed_model, which is the root part. A component named Component1 is created under the root part. All the bodies generated as a part of sketch extrusion would be placed within Component1.

# Create design object
design = modeler.create_design("ahmed_model")

# Create component
component_1 = design.add_component("Component1")

# Create body `ahmed_body` by extrusion
ahmed_body = component_1.extrude_sketch(
    "ahmed_body", sketch=ahmed_body_sketch, distance=194.5
)

# Create body `ahmed_body_fillet` by cut extrusion
ahmed_body_fillet = component_1.extrude_sketch(
    "ahmed_body_fillet", sketch=ahmed_body_fillet_sketch, distance=-500, cut=True
)

# Create body `enclosure` by extrusion
enclosure = component_1.extrude_sketch(
    "Solid1", sketch=enclosure_sketch, distance=1167
)

# Create body `mounting_1` by extrusion
mount_1 = component_1.extrude_sketch(
    "mount_1", sketch=mount_sketch_1, distance=-100
)

# Create body `mounting_2` by extrusion
mount_2 = component_1.extrude_sketch(
    "mount_2", sketch=mount_sketch_2, distance=-100
)

# Create body `boi` by extrusion
# The direction is negative since the sketch is created in X-Z plane, resulting in the direction of normal to be parallel to the -Y axis.
boi_body = design.extrude_sketch(
    "boi", sketch=boi_sketch, distance=500, direction="-"
)

Perform Boolean operations for region extraction

enclosure.subtract([ahmed_body, mount_1, mount_2])
enclosure.plot()

Group faces and define named selection

plane_surface = []
cylindrical_surface = []

# Group faces of enclosure based on topology
for face in enclosure.faces:
    if face.surface_type.name == "SURFACETYPE_PLANE":
        plane_surface.append(face)
    elif face.surface_type.name == "SURFACETYPE_CYLINDER":
        cylindrical_surface.append(face)

wall_mount = []

# Identify faces associated with mounting
for cyl_face in cylindrical_surface:
    if cyl_face.point(0, 0.5)[1] < 0.050:
        wall_mount.append(cyl_face)

# Identify faces associated with enclosure extremes
outlet_face, inlet_face = face_identifier(faces=plane_surface, axis="z")
symmetry_face, symmetry_x_pos = face_identifier(faces=plane_surface, axis="x")
ground, top = face_identifier(faces=plane_surface, axis="y")


# Create named selection
design.create_named_selection("wall_mount", faces=wall_mount)
design.create_named_selection("inlet", faces=[inlet_face])
design.create_named_selection("outlet", faces=[outlet_face])
design.create_named_selection("wall_ground", faces=[ground])
design.create_named_selection("symmetry_top", faces=[top])
design.create_named_selection("symmetry_center_plane", faces=[symmetry_face])
design.create_named_selection("symmetry_x_pos", faces=[symmetry_x_pos])
design.create_named_selection(
    "ahmed_body_20_0degree_boi_half-boi", faces=boi_body.faces
)

body_planar_surface = list(
    set(plane_surface)
    - set([outlet_face, inlet_face, symmetry_face, symmetry_x_pos, ground, top])
)
body_circular_surface = list(set(cylindrical_surface) - set(wall_mount))

rear_surface, front_surface = face_identifier(faces=body_planar_surface, axis="z")
bottom_surface, top_surface = face_identifier(faces=body_planar_surface, axis="y")
side_suface, symmetry_surface = face_identifier(faces=body_planar_surface, axis="x")

body_circular_surface.append(front_surface)

design.create_named_selection("wall_ahmed_body_front", faces=body_circular_surface)
design.create_named_selection(
    "wall_ahmed_body_main",
    faces=[symmetry_surface, bottom_surface, top_surface],
)

# Identify the face that forms a 20-degree angle with the y-axis.
for face in body_planar_surface:
    if round(math.degrees(math.acos(abs(face.normal().y)))) == 20:
        hypo_face = face
design.create_named_selection(
    "wall_ahmed_body_rear", faces=[hypo_face, rear_surface]
)

ansys.geometry.core.designer.selection.NamedSelection 0x7f911c05c950
  Name                 : wall_ahmed_body_rear
  Id                   : 0:1187
  N Bodies             : 0
  N Faces              : 2
  N Edges              : 0
  N Beams              : 0
  N Design Points      : 0

Export model as a PMDB file

Export the geometry into a Fluent-compatible format. The following code exports the geometry into a PMDB file, which retains the named selections.

# Save design
file = design.export_to_pmdb()
print(f"Design saved to {file}")

Design saved to /home/runner/work/pyansys-geometry/pyansys-geometry/doc/source/examples/04_applied/ahmed_model.pmdb

You can import the exported PMDB file into Fluent to set up the mesh and perform the simulation. For an example of how to set up the mesh and boundary conditions in Fluent, see the Ahmed Body External Aerodynamics Simulation example in the Fluent documentation.

Close session

modeler.close()
